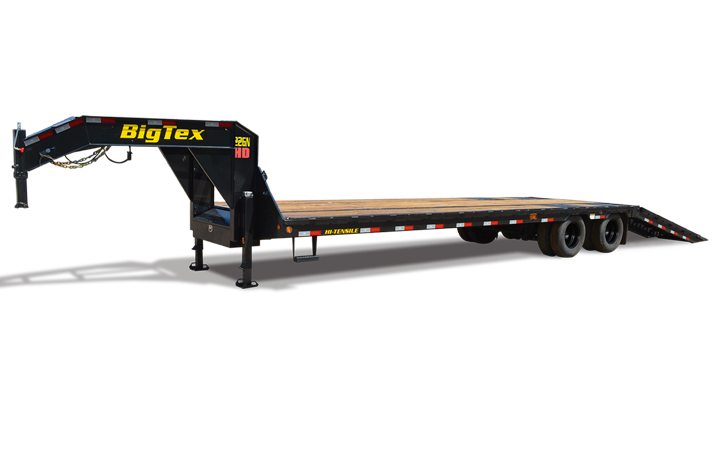

Big Tex 22GN-HDTS 102" x 40 (31 + 9) TD Gooseneck w/ Hydraulic Dovetail

Big Tex 22GN-HDTS 102" x 40 (31 + 9) TD Gooseneck w/ Hydraulic Dovetail

VIN: 161023

Call for Quote

(530) 895-8070

13514 CA-99

Offering an incredible bang for buck, the 22GN-HDTS Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer delivers the best value for those who take on heavy equipment hauls in challenging conditions. And it handles tough situations in construction and industrial operations because of its low-profile pierced beam frame, dual drop leg jacks, crank-style adjustable coupler, and exclusive heavy-duty adjustable suspension system. Backhoes, dozers, or tractors, the 22GN-HDTS is strong enough and durable enough to haul the heaviest equipment. Its time to make an investment in your operation that you wont regret.

  • Overview
  • Features/Specifications
  • Standard/Optional Equipment
  • Financing

Overview

Big Tex 22GN-HDTS 102" x 40 (31 + 9) TD Gooseneck w/ Hydraulic Dovetail

Offering an incredible bang for buck, the 22GN-HDTS Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer delivers the best value for those who take on heavy equipment hauls in challenging conditions. And it handles tough situations in construction and industrial operations because of its low-profile pierced beam frame, dual drop leg jacks, crank-style adjustable coupler, and exclusive heavy-duty adjustable suspension system. Backhoes, dozers, or tractors, the 22GN-HDTS is strong enough and durable enough to haul the heaviest equipment. Its time to make an investment in your operation that you wont regret.

Availability:
In Stock
Axle Config:
Tandem
Max Payload:
15100 lbs.
External Length:
40'(31'+9")
Weight:
8800
Hitch Type:
Gooseneck
Category:
Gooseneck/Pintle Trailers
Year:
2022
Condition:
New
Material:
Steel
Open/Enclosed:
Open
Rear Type:
Dove Tail
Warranty:
Factory Warranty Included
Color:
Black
GVWR:
23900
Capacity:
15100

Features/Specifications

Features

Axle (2) 10,000# Dual Wheel w/ Electric Brakes (Oil Bath)
Jack Dual 12,000# Drop Leg Jacks (Bolted On)
Neck 12" I-Beam, 16#
Tire ST235/80 R-16 Load Range E Dual
Floor 2" Treated Pine or Douglas Fir*
Frame 12" I-Beam, 19#
Wheel 16" x 6"; Black Dual 8 Bolt
Finish Superior Quality Finish is Applied for a Highly Decorative and Protective Finish.
Lights L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Coupler 2-5/16" Ball Adj. Square Crank Type
Dovetail 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps
G.V.W.R. 23,900#
Elec. Plug 7-Way RV
Hitch Type Gooseneck
Side Rails 6" Channel w/Rub Rail, Stake Pockets on 24" Centers, and Chain Spools
Suspension Heavy Duty 30,000# Adjustable
Crossmembers 3" Channel
Finish (Prep) Steel is Cleaned to Ensure a Professional Smooth Finish.
Safety Chains 3/8" Grd. 70 w/Safety Latch Hook (2 each)
G.A.W.R. (Ea. Axle) 10,000#

Specifications

Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer

Big Tex 22GN-HDTS Tandem Dual Axle Gooseneck Hydraulic Dovetail Trailer

Model Description
22GN-35-HDTS 102" x 35' (26' + 9') TD Gooseneck w/ Hydraulic Dovetail
22GN-40-HDTS 102" x 40' (31' + 9') TD Gooseneck w/ Hydraulic Dovetail

Dimensions

Length A B C
35' (26'+9') 420" 259" 161"
40' (31'+9') 480" 319" 161"

Trailer Weights & Capacities

Length Empty Weight Payload Box Capacity
35' (26'+9') 7,950# 15,950# N/A
40' (31'+9') 8,800# 15,100# N/A

Standard/Optional Equipment

Standard Equipment

  • 9 Hydraulic Dovetail
  • Diamond Plate Knife Edge on Rear
  • Cleated Dovetail w/ Wood Between Runners
  • Collaspible Rear Bumper
  • Innovative Sled-Design Locking/Lifting System
  • Lockable Side Mount Tool Box Housing Power Unit
  • 2-5/16" Ball Adjustable Coupler- Square Crank Type
  • Dual 12,000# Drop Leg Jacks (Bolted on) w/Greasable Handle
  • 102" Overall Width
  • Low Profile Bed, Pierced- Beam Frame
  • Lockable Toolbox Between GN Uprights
  • (2) Side Bed Steps & Handles
  • 3/8" Heavy Duty Rub Rail
  • Stake Pockets Along Sides, 24" On Center
  • 1-1/4" Pipe Chain Spools Between Tie Down Pockets
  • Premium Brand Axles
  • Oil Bath Hubs
  • Forward Self Adjusting Brakes
  • Heavy Duty 30,000# Adjustable Suspension
  • Torque Tube- Standard Equipped
  • Zip Breakaway Cable
  • Grommet Mount Sealed Lighting
  • L.E.D. Lighting Package
  • Modular Sealed Wiring Harness
  • Spare Tire Mount (Top of Neck)
  • Complete Break-A-Way System w/Charger
  • Radial Tires
  • Spare Tire & Wheel-Standard Equipped
  • Dovetail Lifting Capacity Approx. 8,000#
  • Dovetail Carrying Capacity Approx. 8,000# (From Middle of Dovetail, Forward)

Optional Equipment

Category Description
BODY Blackwood Pro Rubber Infused Floor
BODY Removable Deck on the Neck- Bolt On (8 W x 6 L)
BRAKES Electric Over Hydraulic Brakes (Disc)
BRAKES Electric Over Hydraulic Brakes (Drums)
CARGO CONTROL 4" Sliding Winch
CARGO CONTROL 4" Weld-On Winch
CARGO CONTROL 4" x 30 Strap
CARGO CONTROL 5/8" D-Ring
CARGO CONTROL Low Profile Tool Box 12" x 18" x 36" (Side Mount)
CARGO CONTROL Sliding Winch Track (Per 6 Section)
JACK Dual 2-Speed Landing Gear
JACKS Dual Electric Over Hydraulic Jacks by Stillwell
POWER 5 Watt Solar Charger
POWER Wireless Remote for Power Unit
TIRE/WHEEL Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare
TIRE/WHEEL Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare

Contact Dealer
